TRA

Trochlea Ridge Arthroplasty

Fundamentals

Total hip replacement in small patients is challenging and requires special designed and downscaled implants.

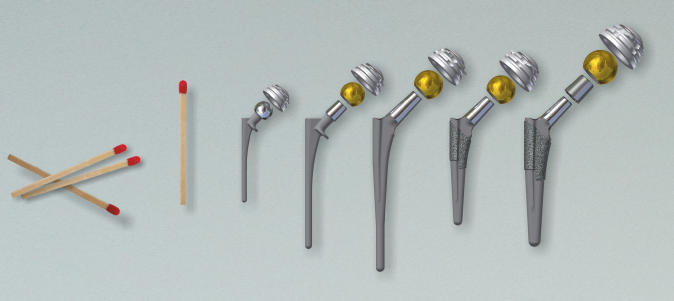

The Mini Hip implant range is an ideal solution for the treatment of small and very small dogs and cats.

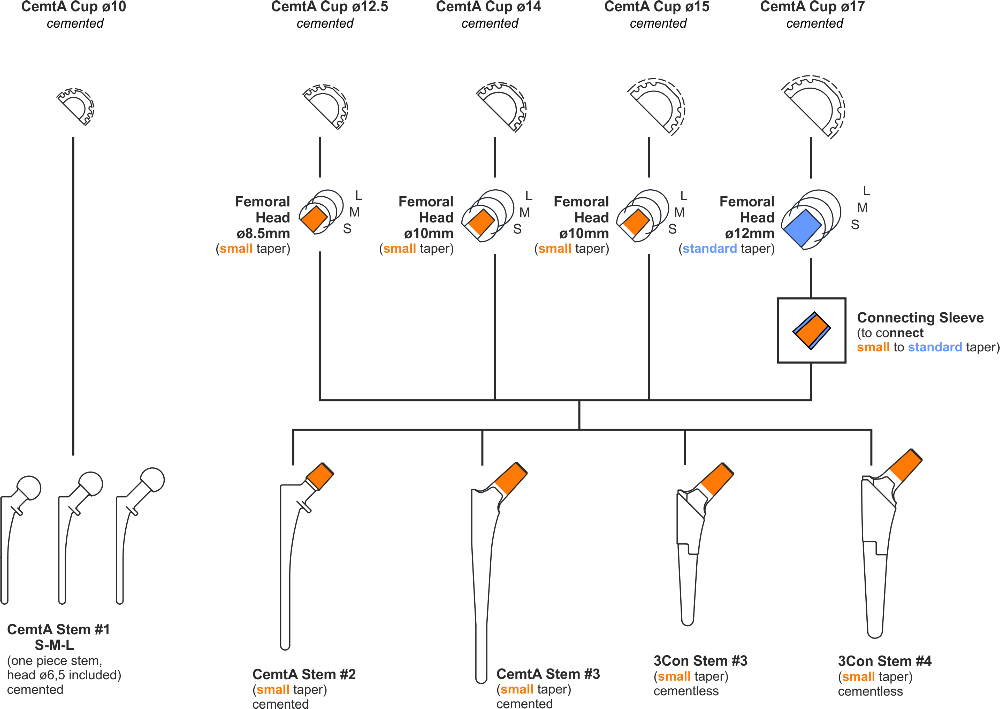

Five cementable acetabular cup sizes, based on the CemtA Cup design with all benefits of this kind, can get linked and combined with different cementable and cementless stems as shown at the table.

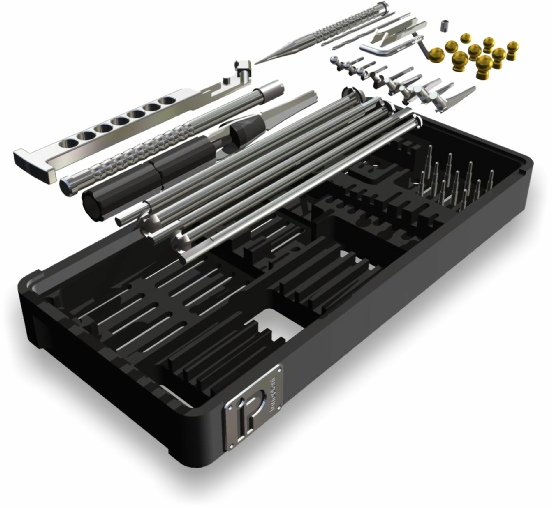

The Mini Hip instrument set can get used autonomously or as an extension of the the basic THR instrument set.

The Mini Hip System is modular. Different head diameters and lengths

ensure to achieve the anatomic needs against luxation and unproper soft tissue

strength. Stems, cups and femoral heads get delivered sterile in seperate boxes.

Mini Hip

cementless, cementable

#1 (cementable, CoCrMo alloy)

#2 (cementable, CoCrMo alloy)

#3 (cementable, CoCrMo alloy)

#3 (pressfit, cementless, CoCrMo alloy)

#4 (pressfit, cementless, CoCrMo alloy,

small taper)


ø10mm    (cementable, UHMWPE)

ø12,5mm (cementable, UHMWPE)

ø14mm    (cementable, UHMWPE)

ø15mm    (cementable, UHMWPE)

ø17mm    (cementable, UHMWPE)



S, M, L (CoCrMo, pre fixed with stems #1)

S, M, L (TiAl6V4, TiN)

S, M, L (TiAl6V4, TiN)

S, M, L (TiAl6V4, TiN)

Indication


Sizes and procedure

Mini Stems:

CemtA Stem

CemtA Stem

CemtA Stem

3Con Stem

3Con Stem


Mini Cups:

CemtA Cup

CemtA Cup

CemtA Cup

CemtA Cup

CemtA Cup


Mini Heads:

ø6,5mm

ø8,5mm

ø10mm

ø12mm

Delivery condition: Sterile, ready to use out of the box.

small breeds
