TRA

Trochlea Ridge Arthroplasty

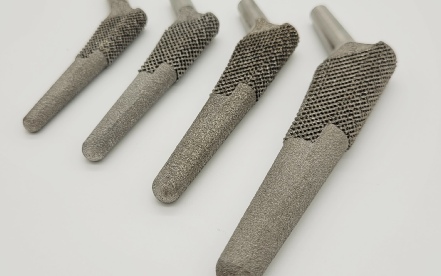

3Con Stem

cementless femoral Stem

Characteristics

The approved cone design of the 3Con stem is developed for cementless application and follows the pressfit anchorage mechanism.

The design with curved lateral overlap supports the proximal seating and optimizes the anchorage stability of the stem-bone system.

It is characterised by extra-ordinary stability and longevity minimising implant rotation.

It is possible to switch intra-operatively from the cementless 3Con to the cementable CemtA Stem procedure without further additional instruments.

Shape

Geometry:

Material:




Proximal surface:

Distal surface:

Sizes:

cone with lateral overlap

Cobalt-Chrome-Molybdenum alloy (CoCrMo

ISO 5832-4, US-Standard ASTM  F75)

Titanium alloy (TiAl6V4, ISO 5832-3,

ASTM F 1472)

spherical ball-layers / lattice structure

blasted

#4 to #10

Biomechanics

Primary Anchorage:

Secondary Anchorage:

pressfit

ongrowth and formation of bone stock

Instruments

Instruments

Surgery

Technique

Delivery condition: Sterile, ready to use out of the box.

Contact

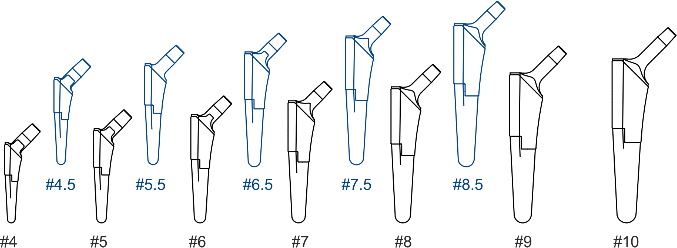

Size Feature

The press fit anchorage procedure of stems requires the accurate filling of the femoral diaphysis. To achieve the needed geometric accordance between the femur and the stem implant,1mm upscaling of the stem from one to the next size can be a too huge step.

The new and additional intermediate sizes reduce the upscaling steps of the stem dimensions from previous 1mm to 0,5mm.
